Automatic Music Boundary Detection Using Short Segmental Acoustic Similarity in a Music Piece
© Yoshiaki Itoh et al. 2008
- Received: 2 November 2007
- Accepted: 27 May 2008
- Published: 11 June 2008
The present paper proposes a new approach for detecting music boundaries, such as the boundary between music pieces or the boundary between a music piece and a speech section for automatic segmentation of musical video data and retrieval of a designated music piece. The proposed approach is able to capture each music piece using acoustic similarity defined for short-term segments in the music piece. The short segmental acoustic similarity is obtained by means of a new algorithm called segmental continuous dynamic programming, or segmental CDP. The location of each music piece and its music boundaries are then identified by referring to multiple similar segments and their location information, avoiding oversegmentation within a music piece. The performance of the proposed method is evaluated for music boundary detection using actual music datasets. The present paper demonstrates that the proposed method enables accurate detection of music boundaries for both the evaluation data and a real broadcasted music program.
- Feature Vector
- Video Data
- Music Piece
- Actual Music
- Popular Music
Hard discs have recently come into widespread use, and the medium of the home video recorder is changing from sequential videotape to media such as random accessible hard discs or DVDs. Such media can store recording video data of great length (long-play video data) and play stored data at any location in the media immediately. In conjunction with the increasingly common use of such long-play video data, the demand for retrieval and summarization of data has been growing. In addition, detailed descriptions of the content associated with correct time information are not usually attached to the data, although topic titles can be obtained from electronic TV programs and attached to the data. Automatic extraction of each music piece is meaningful for the following reasons. Some users who enjoy watching music programs want to listen to the start of each music piece, omitting the conversations between music pieces, and other users want to view the speech conversational sections. Therefore, automatic detection of music boundaries between music pieces, or between a music piece and a speech section, is necessary for indexing or summarizing video data. In the present paper, a music piece refers to a song or a musical performance by an artist or a group, such as "Thriller" by Michael Jackson.
The present paper proposes a new method for identifying the location of each music piece and detecting the boundaries between music pieces avoiding oversegmentations within a music piece for automatic segmentation of video data. The proposed method employs an acoustic similarity of short-term segments in a music and speech stream. The similarity is obtained by means of segmental continuous dynamic programming, called segmental CDP. In segmental CDP, a set of video acoustic streaming data is divided into segments of fixed length, for example, 2 seconds. Continuous DP is performed on the subsequent acoustic data, and similar segments are obtained for each segment . When segment A matches a subsequent segment, namely, segment B, segments A and B are similar and are considered to fall within the same music piece. However, different music pieces are expected to have few similar segments. Therefore, the location and the boundaries of a music piece is identified using the location and the frequency information between similar segments of fixed length. This approach is an extension of topic identification, as described in .
Some studies reported music retrieval applications in which the target music is identified by a query music section [3, 4]. A number of studies [4–9] have proposed methods for acoustic segmentation that is primarily based upon the similarity and dissimilarity of local feature vectors. The performance in these studies was evaluated based on the correct discrimination ratio of frames [7–9] and not on the correct discrimination ratio of music boundaries. Using these methods, music boundaries are difficult to detect when music pieces are played continuously as they are in usual music programs. Our preliminary experiments showed that the GMM, which is a typical method of discrimination between music and voice, could not detect music boundaries in continuous music pieces. Dynamic programming has already been used to follow the sequence of similar feature vectors and to detect boundaries between music and speech and between music pieces . This type of methods is likely to detect unnecessary boundaries such as points of modulation and changes in musical instruments as described . Vocal sections without instruments were also determined as boundaries in our preliminary experiments, and related studies have not been able to avoid oversegmentation within a music piece. The proposed method can capture the location of a music piece using acoustic similarity within the piece and avoid oversegmentation.
First, the present paper describes an approach for detecting music boundaries, with the goal of automatic segmentation of video data such as musical programs. The concept and the segmental CDP algorithm are then explained, along with the methodologies for identifying the music boundaries using similar segments that are extracted by segmental CDP. The feasibility of the proposed method is verified by experiments on music boundary detection using open music datasets supplied by the RWC project , and by applying the method to an actual broadcasted music program.
2.1. Outline of the Proposed System
Generally speaking, in music, especially in popular music, the same melody tends to be repeated, such that the first and second verses have the same melody but different words and the main melody is repeated several times. Each music piece is assumed to have acoustically similar sections within the music piece. The algorithm proposed in  can extract similar sections between two time-sequence datasets, or in a single time-sequence dataset. The method identifies similar sections of any length at any location strictly in a time-sequence dataset. Since such strict similar sections are not necessary to identify music boundaries, the approach described herein uses only similar segments of fixed length (e.g., 2 seconds) in a music piece. The proposed approach does not require prior knowledge or acoustical patterns for music pieces, which are usually stored in retrieval systems. The algorithm is improved to extract similar segments of fixed length. The improvement simplifies the algorithm and reduces the complexity of computation required to deal with large datasets such as long video data. There are few simple algorithms for extracting similar segment pairs between two time sequence datasets. Although the algorithms can deal with any type of time-sequence dataset, the following explanation involves a single acoustic dataset for ease of understanding.
2.2. Segmental CDP for Extracting Similar Segment Pairs
This section describes the algorithm of segmental CDP for extracting similar segment pairs from a time-sequence dataset. Segmental CDP was developed by improving the conventional CDP algorithm that efficiently searches for reference data of a fixed length in long input time-sequence data. CDP is a type of edge-free dynamic programming that was originally developed for keyword spotting in speech recognition. The reference data are composed of feature vector time-sequence data that are obtained from spoken keywords. CDP efficiently searches for the reference keyword in long-speech datasets.
First, segments are composed of the feature vector time-sequence data. Each segment has a fixed length ( frames). The first segment is composed of the first frames with the progress of input data, as shown by (I) in Figure 2. With the progress of frames, a new segment is composed of the newest input frames. As soon as the new segment is constructed, CDP is performed for the segment and all other previously constructed segments toward the subsequent data, as shown by (II) and (III) in Figure 2.

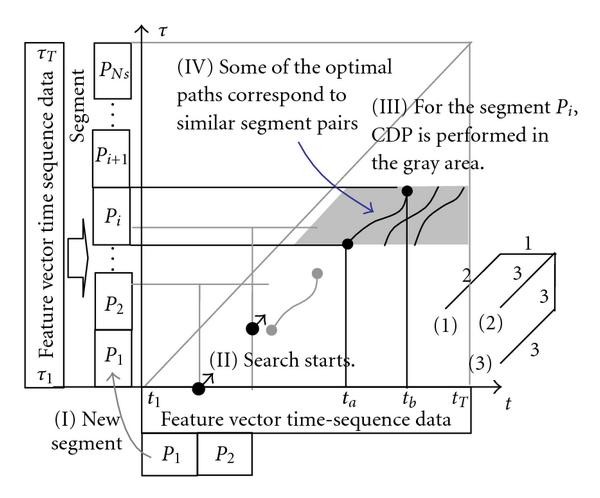

The optimal path is obtained for each segment at each time. When a segment matches an input segment , the segments are considered to be similar, as depicted by the black line in Figure 2. Section and segment constitute a similar segment pair.
Initially, corresponds to the current frame on the vertical axis in segment ; and corresponds to the current time on the horizontal axis. , and represent the frame number of a segment, the total number of segments, and the total number of input frames, respectively. The core algorithm of Segmental CDP is shown in Algorithm 1.
Algorithm 1: Core algorithm of segmental CDP.
LOOP : for each current time ,
LOOP : for each segments
LOOP : for each frame of segment
at the last frame of segment
Segment and the th Segment are considered to be
candidates for a similar section pair.
After frames are input from the beginning, the first segment is generated and starts computing (a). After all frames are input, a new segment is generated and starts computation. Therefore, segments are generated in input time , discarding the remainder.
Equation (a) computes the local distance between the feature vectors of the frame of segment and the current input time . The cepstral distance or Euclidean distance, for example, can be used as the local distance.
The cumulative distance and the starting point are updated by (d) and (e), where denotes the start time of segment up to the th frame. Starting point information must be stored and must proceed along the optimal path in the same way as the cumulative distance.
Since is an important system parameter that affects the performance, the optimal number for is investigated experimentally.
The conditions of (f) indicate that the segment and the th segment are candidates for a similar section pair, because the total distance falls below the threshold value and the local minimum at the last frame of segment . Each segment saves the positions and the total distance of the candidates in accordance with the rank of the distance . Let the number of candidates that each segment saves be . As shown, the algorithm can be processed synchronously with input data.
Since a music piece does not usually continue for an hour, similar parts of a segment need not be searched in data occurring an hour after the segment. Therefore, the current part around time is not similar to segment , where is large. At LOOP of the algorithm of segmental CDP, the starting segment for CDP can be modified from 1 to . This modification leads to decreased searching space and computation time, as well as spurious similar segments.
2.3. Music Boundary Detection
2.3.1. Music Boundary Detection from Similar Segment Pairs
A section appearing between a similar segment pair likely falls within the same music. This section describes a method for detecting a music boundary from similar segment pairs extracted by segmental CDP. The proposed method uses a histogram that shows the same music probability and is composed of the four steps listed below. Here, denotes the number of total segments, as mentioned above.
Extract candidates of similar segment pairs by Segmental CDP.
Among the candidates in (a), determine similar segment pairs by extracting pairs that are of higher rank in terms of total distance.
Draw a line between the members of each similar segment pair determined in (b).
Count the number (frequency) of passing lines on each segment and compose a histogram, as shown in Figure 3.
First, a sufficient number of candidates of similar segment pairs are extracted, as explained in the previous section. Second, similar segment pairs are selected until the number of candidates becomes according to the rank corresponding to the total distance of Segmental CDP. Third, after extracting similar segment pairs in (b) and plotting them on a time axis, a line is drawn between the members of each similar segment pair, as shown in Figure 3. Lines are drawn for all similar segment pairs. Finally, the number (frequency) of passing lines on each segment is counted, and a histogram is composed based on these numbers, as shown in Figure 3.
A peak is formed within the same music piece, because specific melodies are repeated in music and many parts within the music generate similar segments, as shown in Figure 3. The dips in the graph are taken as candidates for music boundaries when music pieces continue, and the flat low parts in the histogram are regarded as a voice section.
An overlap might occur between two similar segment pairs when their segments become longer from DP matching. When composing a histogram, the number of lines for an overlap segment becomes two, which does not significantly affect the histogram.
The time difference of a similar segment pair should be less than one hour, because music pieces usually do not exceed one hour. The search area can be restricted to a fixed length, such as 5 minutes. Such a restriction can reduce the number of incorrect similar segment pairs as well as the computation complexity of segment CDP. For example, the computation perplexity becomes less than 1/10 when restricted to 5 minutes for a 90-minute program.
Here, is a parameter that affects the performance, and the optimal number for is investigated in the following experiments.
2.3.2. Introduction of Dissimilarity Measure for Finding Feature Vector Changing Points
In this section, we introduce a dissimilarity measurement to demonstrate that the proposed method can extract the location of each music piece.
where in (1) indicates the dissimilarity between the current frame vector at and the preceding vectors for frames. From the boundary at time that is obtained by the music boundary detection using similarity in a music piece, an acoustic changing point of the feature vectors is searched toward the outside of a music piece according to (2). The point of maximum dissimilarity of at is regarded as a new music boundary. Here, a cosine window is used to give a larger weight to the points that are nearer the first detected boundary at . In the following experiments, a cepstral distance is used for the distance between the frame vectors and the frame vectors. The parameters and were determined experimentally to be 10 seconds and 20 seconds, respectively.
3.1. Evaluation Data and Experimental Conditions
Experiments were performed to evaluate the performance of the proposed method for detecting music boundaries. The object data in these experiments are popular music data taken from the open RWC music database . The database includes 100 popular music pieces. The total length of the music sets is 6 hours and 38 minutes. The average time is 3 minutes 58 seconds, and the longest and shortest times are 6' 32" and 2' 12," respectively.
First, silent parts, which are added before and after each music piece, are deleted because real-world video data usually have no boundary information for music. Two types of datasets were prepared. For the first dataset, a continuous music dataset was obtained by concatenating 100 music datasets. Silent parts between music pieces were not included in the dataset. This condition is considered to be strict for methods that consider the acoustic difference [4–6]. There were 99 boundaries for the continuous music dataset. For the second dataset, a music-voice mixed dataset, in which a one-minute speech was inserted between music pieces, was used as the continuous music dataset. Therefore, we inserted 99 speech sections that were taken from an open speech corpus of Japanese newspaper article sentences. There were 198 boundaries between voice sections and music sections.
The music data were sampled at 44.1 kHz in stereo and were quantized at 16 bits. A 20D mel-frequency cepstral coefficient  was used as a feature vector. Cepstral distance was used as the local distance in (a). The window size for analysis and the frame shift were both 46 milliseconds (2,048 samples).
This method employs two main parameters. The first is the segment length in segment CDP, and the second is the number of similar segment pairs in (b) of Section 2.3. We performed an experiment while varying the parameters and , as shown below:
(i)segment length: frames (1.0, 2.0, 3.0, 4.0, 5.0 seconds),
(ii)number of similar segment pairs: .
In the experiment, the search area for similar segment pairs was restricted to 5 minutes.
3.2. Results and Discussion
3.2.1. Evaluation of System Parameters
Under the conditions mentioned above, experiments are conducted for the purpose of detecting music boundaries among 100 music pieces.
Evaluation for Segment Length
Figure 5 shows the overall performance obtained by varying the segment length , where the precision rate and recall rate are used for measurement. The detected boundary is conside red to be correct if the boundary falls within 5 seconds of the actual boundary. The best performance is obtained under the condition shown in Figure 4 [ frames (1.0 s), ]. The point X on the line indicates that 80% of boundaries are correct (recall rate) when 112 boundary candidates are extracted (70% precision rate) by this method. The best -measure, defined as a harmonic average of the precision and recall rate, becomes 0.74.
Evaluation of The Number of Candidates
Evaluation of Dp and Linear Matching
3.2.2. Evaluation of Voice-Music Mixed Dataset
3.2.3. Evaluation of Introducing Dissimilarity Measure
3.2.4. Evaluation of Correct Range of Music Boundaries
We obtained an -measure of 0.84 for a continuous music dataset and an -measure of 0.74 for a voice-music mixed dataset.
3.2.5. Experiment for an Actual Music Program
3.2.6. Future Research
The method described in Section 3.2.3 using a dissimilarity measure is thought to be a nonoptimal method for finding feature vector changing points. Therefore, we sought an optimal method using Gaussian mixture models (GMM), a support vector machine, and so on. Throughout the experiments of the present study, the optimal parameters, such as and , were obtained for the closed datasets. Therefore, the robustness of the parameters must be evaluated using various types of datasets. For example, the tempos of each music piece are different, and a suitable value of is thought to exist for each tempo. A method is needed for adapting to each music piece according to its tempo and other parameters. The proposed algorithm deals with the monotonic similarity of a constant length of segments, and does not take into account the hierarchical structure of a music piece. A more elaborate algorithm should also be a topic of future studies to discuss hierarchical similarity in a music piece.
Music is not only based on "repetition," but also on "variation," such as in modulation and different verses that might deteriorate the performance of the algorithm. The present study focused on popular music that is most frequently broadcasted in TV programs. The algorithm should also be evaluated using other music genres such as jazz and lyrics in a future study. We have already quantified the proposed method using pseudomusic datasets, and the next step will be to apply it to real-world streaming data, such as the music program described in Section 3.2.5.
The present paper proposed a new approach for detecting music boundaries in a music stream dataset. The proposed method extracts similar segment pairs in a music piece by segmental continuous dynamic programming and can identify the location of each music piece according to the information of occurrence positions of the similar segment pairs. The music boundaries are then determined. Experimental results reveal that the proposed approach is a promising method for detecting music boundaries between music pieces, while avoiding oversegmentation within music pieces. An optimal method for finding the acoustic changing points using GMM, and so on, will be studied in the future. Better parameter sets (feature vector, number of frame shift, etc.) must be investigated for this purpose. Evaluation should be performed using other music genres and real-world stream data, such as video data, because the experiments of the present study examined only the popular music genre and speech corpus data.
This research was supported in part by Grant-in-Aid for Scientific Research (C) no. KAKENHI 1750073 and Iwate Prefectural Foundation.
- Itoh Y, Tanaka K: A matching algorithm between arbitrary sections of two speech data sets for speech retrieval. Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP '01), May 2001, Salt Lake City, Utah, USA 1: 593-596.Google Scholar
- Kiyama J, Itoh Y, Oka R: Automatic detection of topic boundaries and keywords in arbitrary speech using incremental reference interval-free continuous DP. Proceedings of the 4th International Conference on Spoken Language Processing (ICSLP '96), October 1996, Philadelphia, Pa, USA 3: 1946-1949.View ArticleGoogle Scholar
- Smith G, Murase H, Kashino K: Quick audio retrieval using active search. Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP '98), May 1998, Seattler, Wash, USA 6: 3777-3780.Google Scholar
- Cooper M, Foote J: Automatic music summarization via similarity analysis. Proceedings of the 3rd International Conference on Music Information Retrieval (ISMIR '02), October 2002, Paris, France 81-85.Google Scholar
- Foote J: Automatic audio segmentation using a measure of audio novelty. Proceedings of the IEEE International Conference on Multimedia and Expo (ICME '00), July-August 2000, New York, NY, USA 1: 452-455.View ArticleGoogle Scholar
- Allamanche E, Herre J, Hellmuth O, Kastner T, Ertel C: A multiple feature model for musical similarity retrieval. Proceedings of the 4th International Conference on Music Information Retrieval (ISMIR '03), October 2003, Baltimore, Md, USAGoogle Scholar
- Carey MJ, Parris ES, Lloyd-Thomas H: A comparison of features for speech, music discrimination. Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP '99), March 1999, Phoenix, Ariz, USA 1: 149-152.View ArticleGoogle Scholar
- El-Maleh K, Klein M, Petrucci G, Kabal P: Speech/music discrimination for multimedia applications. Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP '00), June 2000, Istanbul, Turkey 4: 2445-2448.Google Scholar
- Saunders J: Real-time discrimination of broadcast speech/music. Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP '96), May 1996, Atlanta, Ga, USA 2: 993-996.Google Scholar
- Goodwin MM, Laroche J: A dynamic programming approach to audio segmentation and speech/music discrimination. Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP '04), May 2004, Montreal, Canada 4: 309-312.Google Scholar
- Goto M, Hashiguchi H, Nishimura T, Oka R: RWC music database: popular, classical, and jazz music databases. Proceedings of the 3rd International Conference on Music Information Retrieval (ISMIR '02), October 2002, Paris, FranceGoogle Scholar
- Rabiner L, Juang BH: Fundamentals of Speech Recognition. Prentice-Hall, Englewood Cliffs, NJ, USA; 1993.Google Scholar
